Engineering Projects & Equipment Portfolio

Industrial equipment and automation projects engineered by VitroVentures: mechanical design, SolidWorks CAD, controls, robotics and mechatronics.

Some client projects are withheld from publication at the client’s request.

  • Rockwell, Siemens, Omron, SolidWorks, Inventor
  • P.Eng. support where required
  • Usually reply within one business day
  • On-site in Metro Vancouver & Fraser Valley
Portfolio · 14 machines

Machines & Systems We Have Designed

AUTOMATION

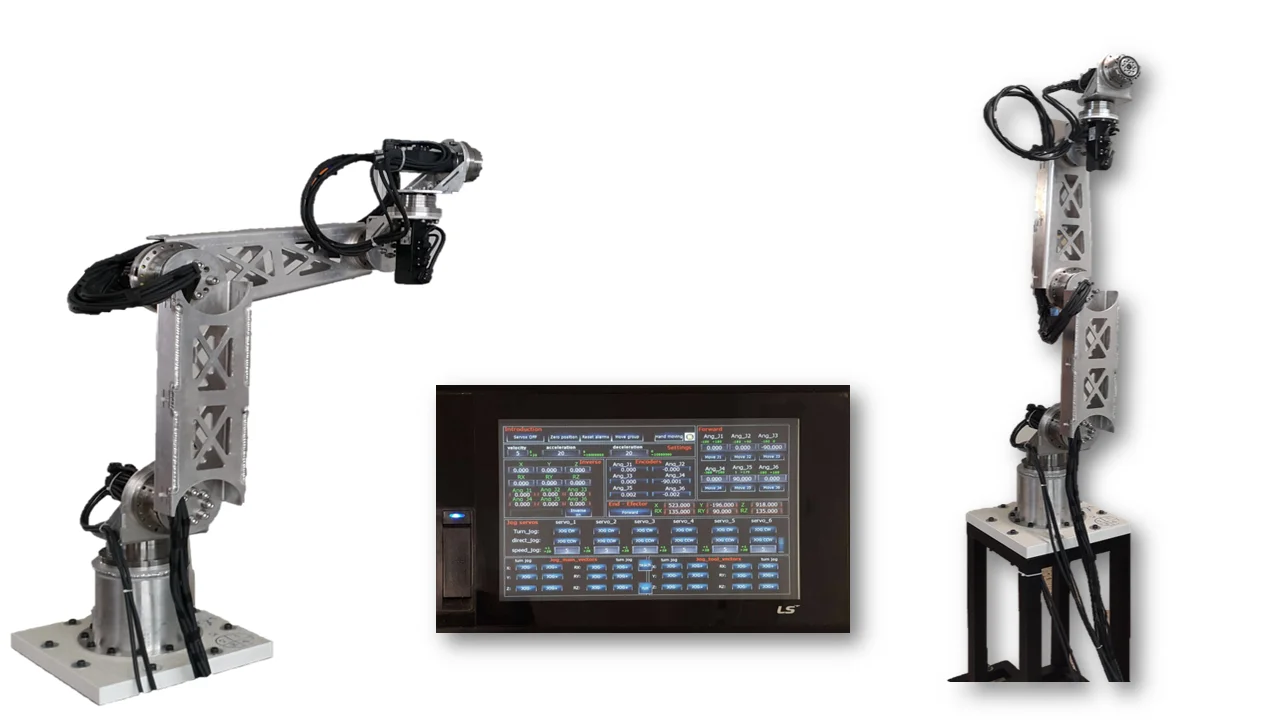

Scalable 6-Axis Robotic Platform

Modular 6-axis robot and motion controller for scalable production.

View project
Specifications
  • Parameterized kinematic model, arm/link lengths and axis geometry set as configuration parameters
  • Cost-effective LS-based control architecture shared across the whole robot family
  • Forward/inverse kinematics, joint-space & Cartesian motion, spherical/non-spherical wrists, coordinated multi-axis interpolation
AUTOMATION

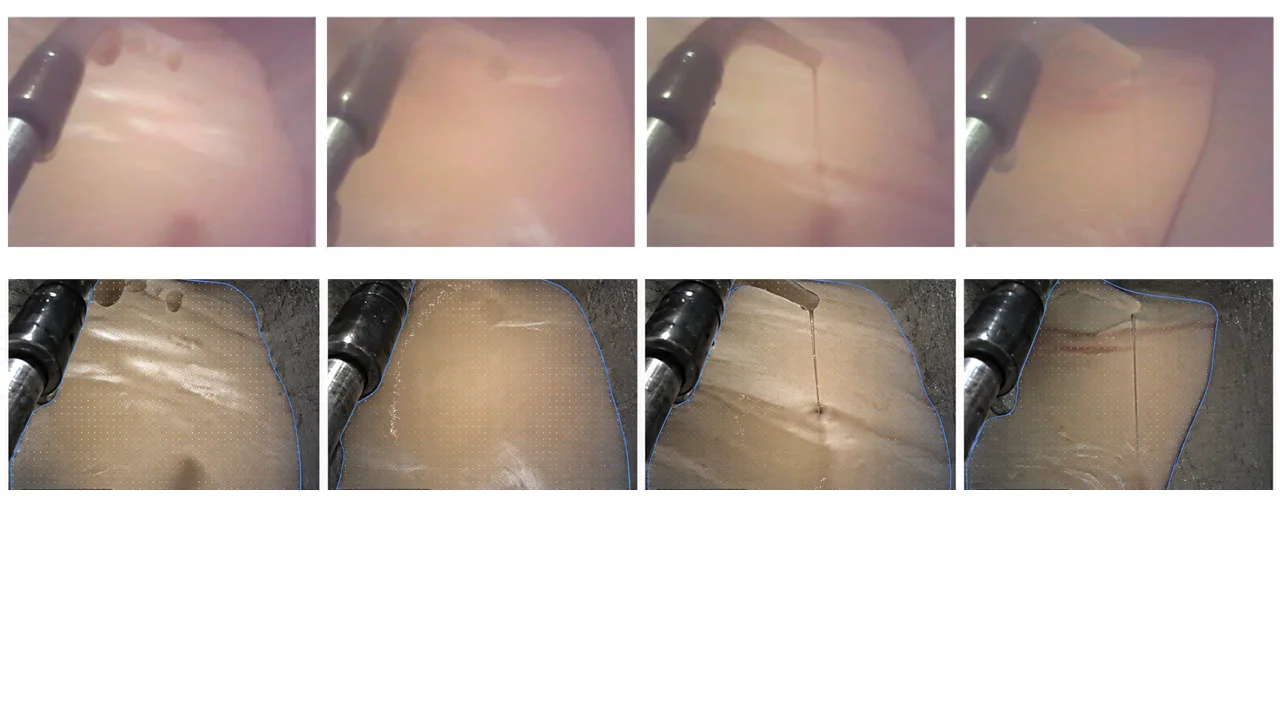

Vision-Based Foam Volume Measurement & PLC Control

Real-time vision measures foam volume and feeds the PLC.

View project
Specifications
  • Foam-region segmentation, contour extraction and edge detection separate foam from liquid, chamber surfaces and internal hardware
  • Calibrated chamber geometry and detected foam boundary estimate foam volume in cm³
  • Foam volume sent to the PLC as a process variable for control logic, alarms and high-foam interlocks
AUTOMATION

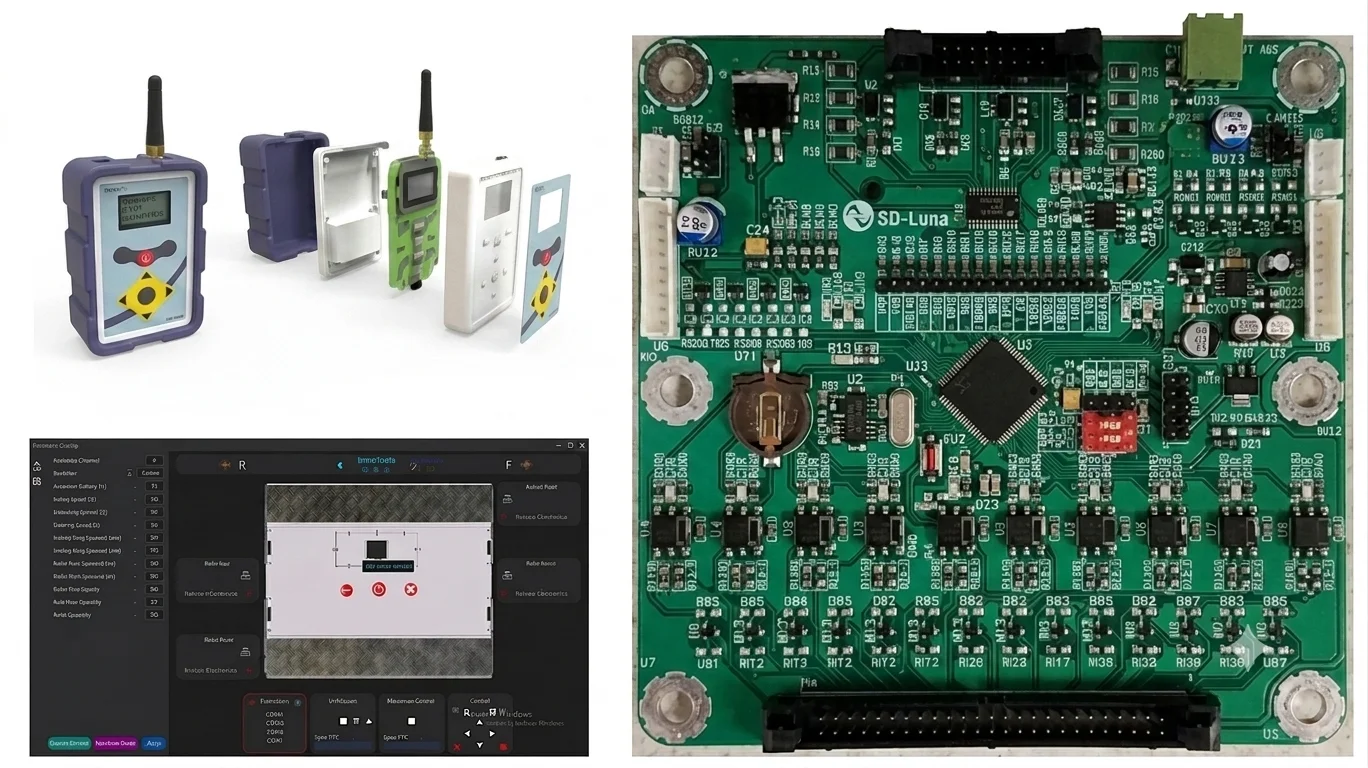

Pallet Shuttle Main Control Board

Cortex-M3 control board designed to IPC-2221.

View project
Specifications
  • Cortex-M3 ARM processor, designed to IPC-2221
  • High-range 433 MHz RF link with the remote control
  • IO-Link with sensors and C# configuration software
MECHANICAL

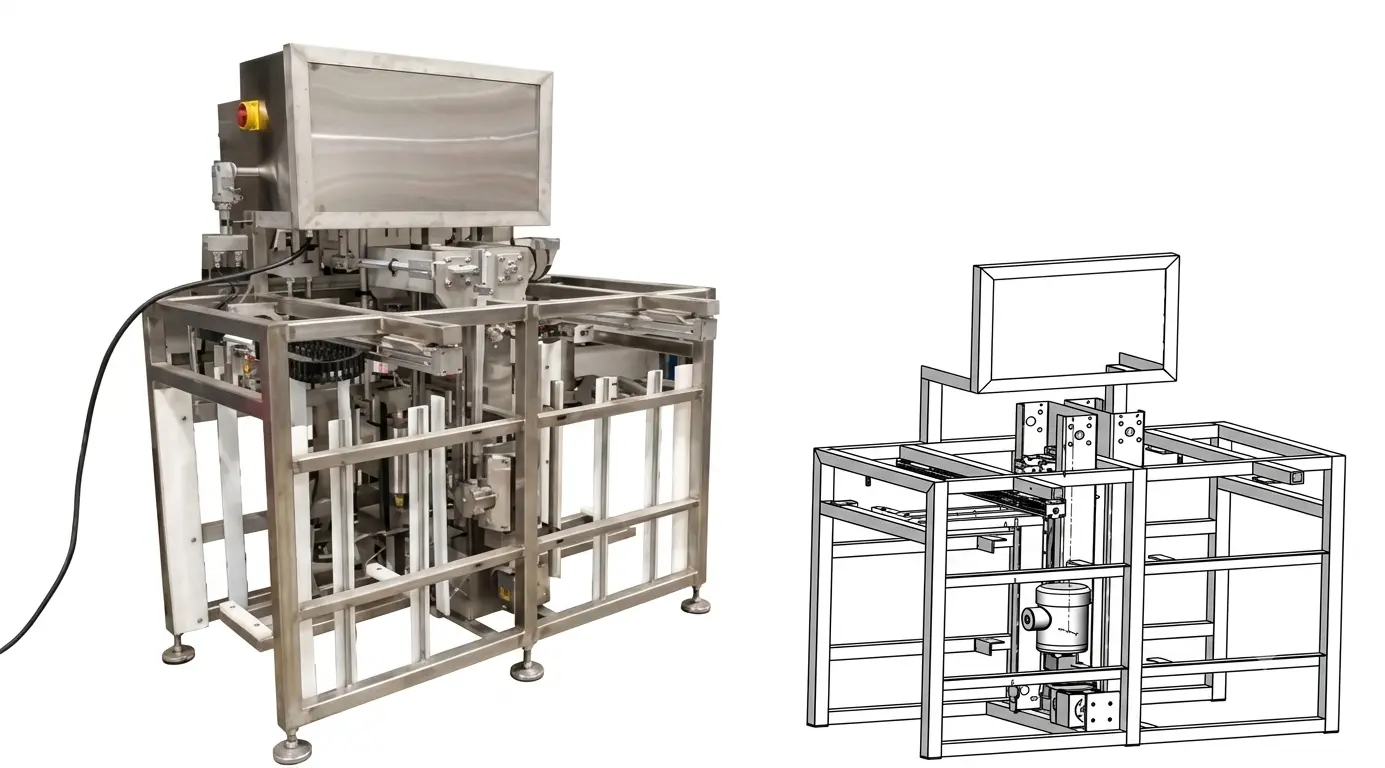

Tray Indexer

Picks trays from a stack and places them on the conveyor.

View project
Specifications
  • Automatic tray pick-and-place from stack to conveyor
  • Fully customizable PLC / HMI to customer requirements
  • Reliable high-cycle mechanical singulation
MECHANICAL

Inclined Screw Conveyors

Stainless conveyors for sticky, sluggish bulk materials.

View project
Specifications
  • Ideal for handling sticky and sluggish bulk materials
  • Improved conveying efficiency versus other conveyor types
  • Temperature controlled through jacketed wall
AUTOMATION

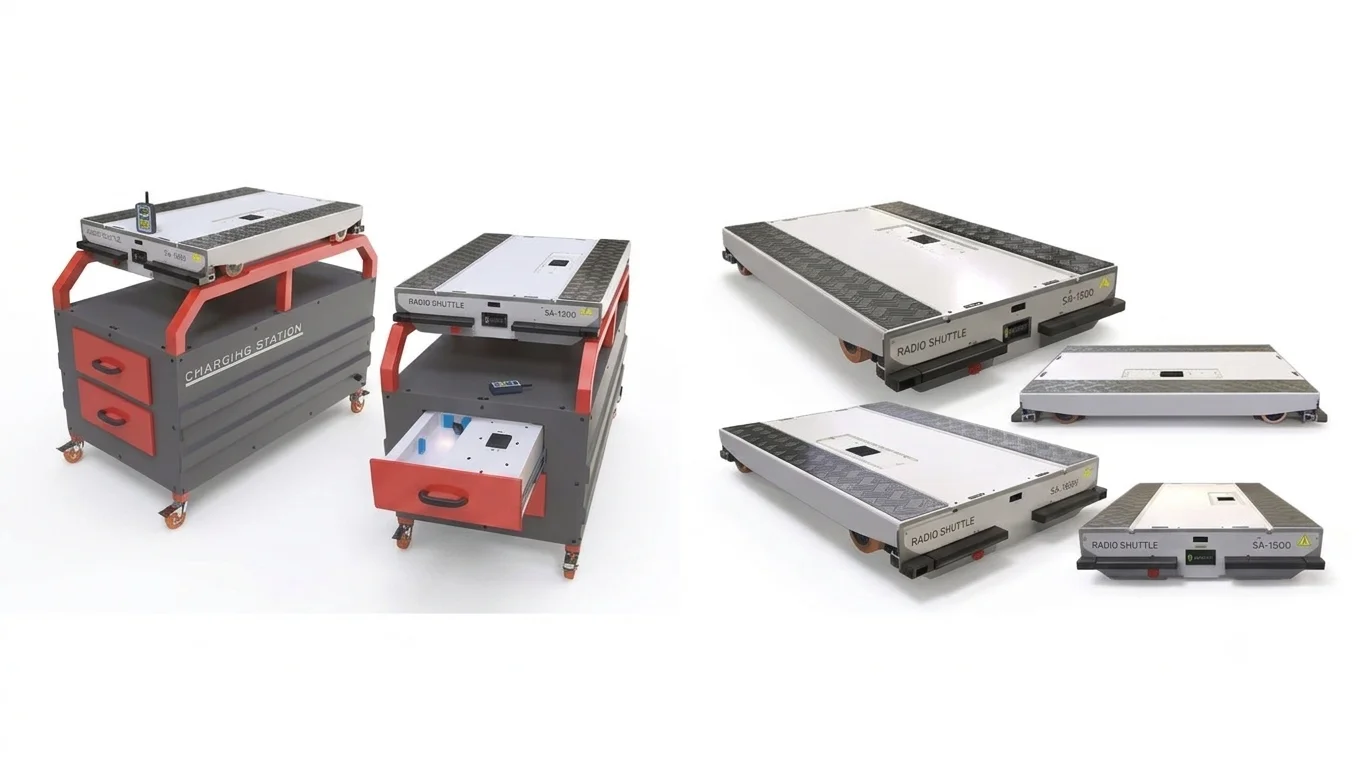

Pallet Shuttle Robot

Carries pallets and loads in warehouse storage racks.

View project
Specifications
  • Loading capacity: 1500 kg, max speed 1.2 m/s (no load)
  • Remote controlling with dedicated charging station
  • Dimensions: 203 × 828 × 1375 mm
AUTOMATION

Intelligent Climate Control

Controls soil moisture, temperature, humidity and light.

View project
Specifications
  • WiFi, Bluetooth and LTE communication
  • Web application interface with cloud data storage
  • RS-485 Modbus, IP68 enclosure, programmable relays
MECHANICAL

Bulk Bagging Machine

Bulk bagging for dry pelleted, flaked and granular products.

View project
Specifications
  • Fills bulk bags at speeds of up to 40 bags per hour
  • Suited for dry pelleted, flaked and granular products
  • Stainless steel, sanitary construction
AUTOMATION

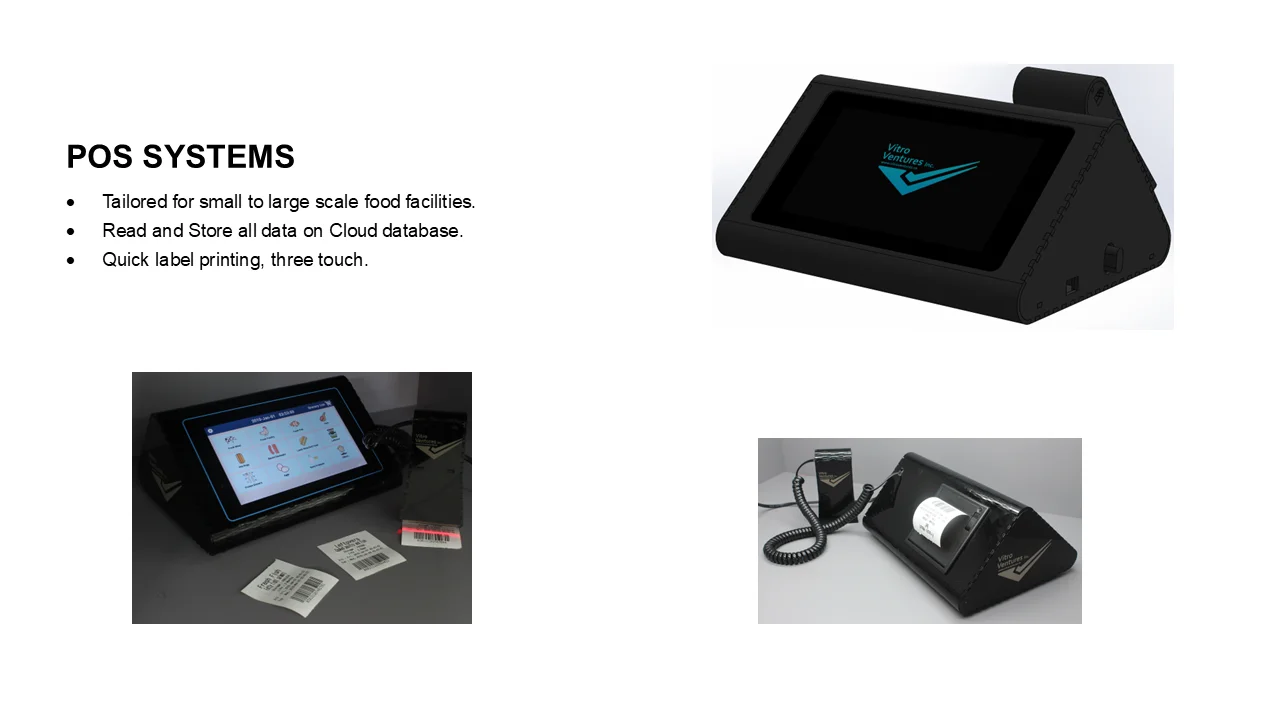

POS Systems

Point-of-sale systems for food facilities of any size.

View project
Specifications
  • Tailored for small to large scale food facilities
  • Reads and stores all data on a cloud database
  • Quick label printing in three touches
AUTOMATION

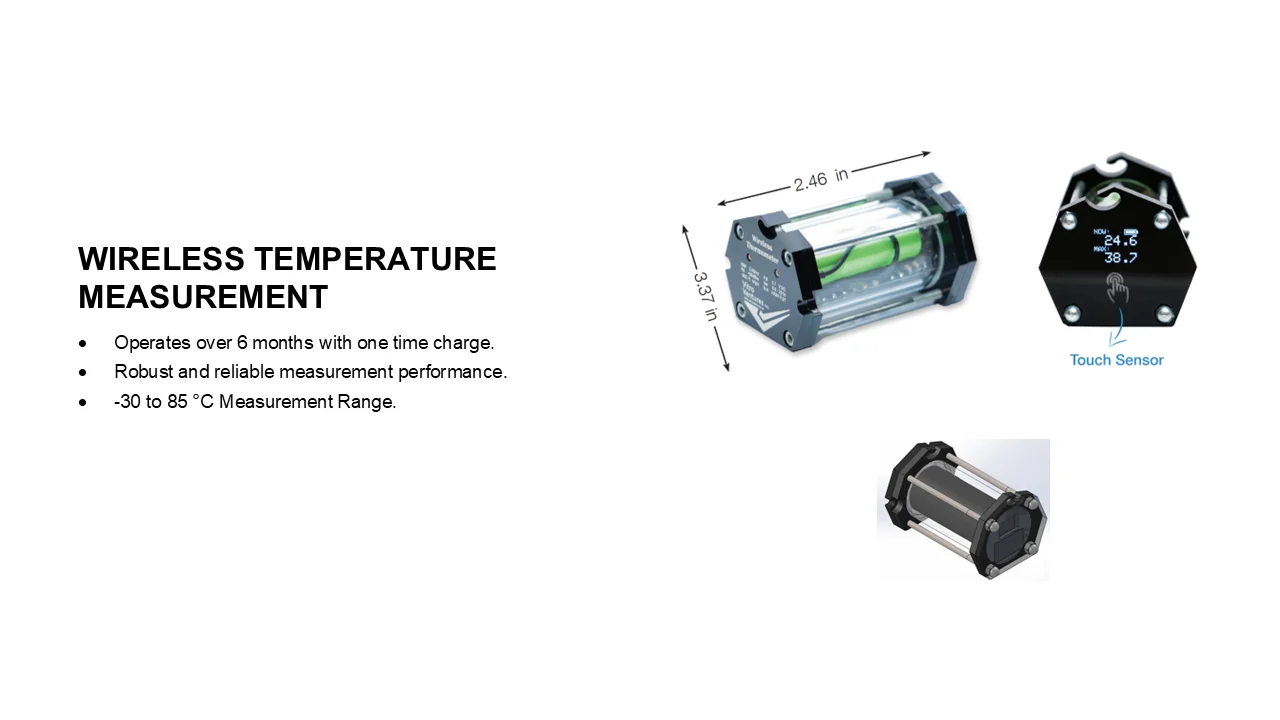

Wireless Temperature Measurement

Long-life, reliable wireless temperature sensing.

View project
Specifications
  • Operates over 6 months on a single charge
  • Robust and reliable measurement performance
  • Measurement range: -30 to 85 °C
MECHANICAL

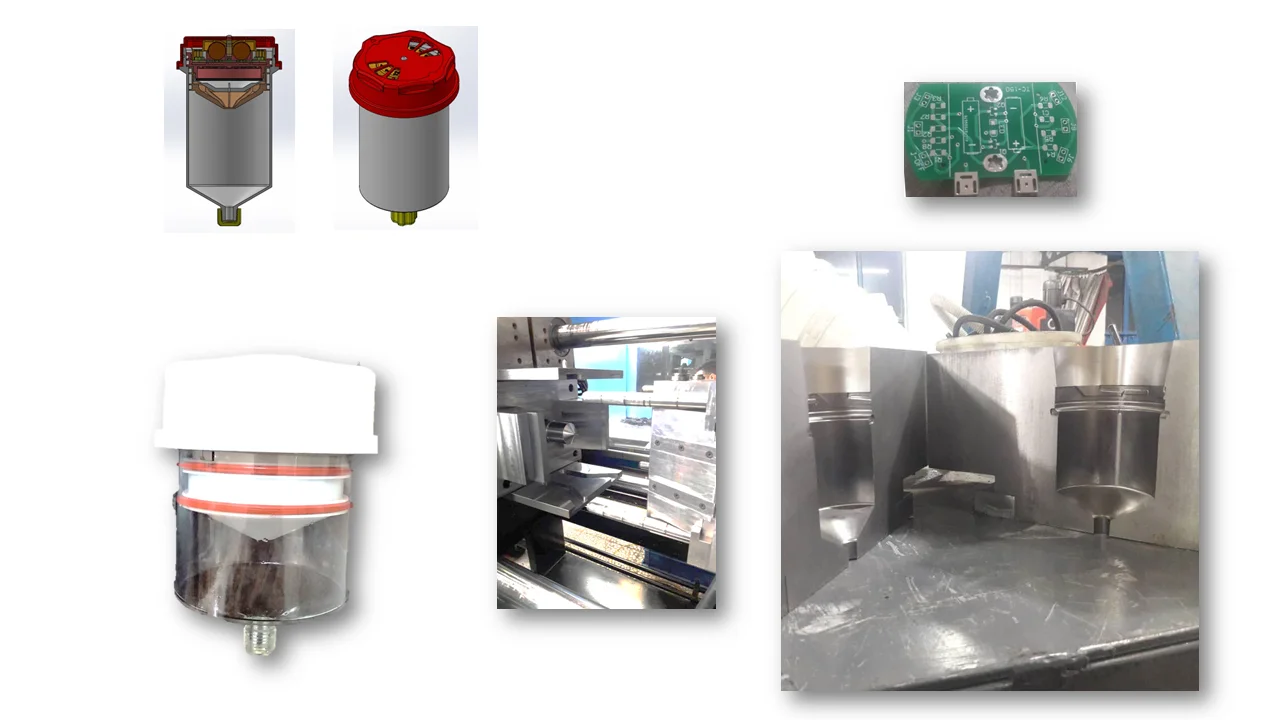

Electrochemical Automatic Lubricator

Consistent automatic lubrication for industrial machinery.

View project
Specifications
  • Used for lubricating industrial systems and machinery
  • Automatic lubrication delivers regular, consistent amounts
  • Minimizes operator error
CONFIDENTIAL PROJECTImages withheld at the client’s request
MECHANICAL

Cooling Tunnel

Continuous in-line product cooling.

View product page
Specifications
  • Full mechanical design completed by VitroVentures
  • Engineered for continuous in-line cooling of products
  • Project images withheld at the client’s request
CONFIDENTIAL PROJECTImages withheld at the client’s request
AUTOMATION

Automated Tray Stacker

Stacks standard trays and sorts them by order and route.

View product page
Specifications
  • Quick tool change between tray types
  • Barcode scanning and label inspection
  • Developed with an industry partner; images withheld under NDA
CONFIDENTIAL PROJECTImages withheld at the client’s request
MECHANICAL

Canning Line, Can Filler

Can filling line rated up to 100 cans per minute.

View project
Specifications
  • Can filling line designed for up to 100 cans per minute
  • Full mechanical design completed by VitroVentures
  • Project images withheld at the client’s request
